Hatsuyuki HB-600A Shaver Parts

Diagram 1

Diagram 2

Diagram 3

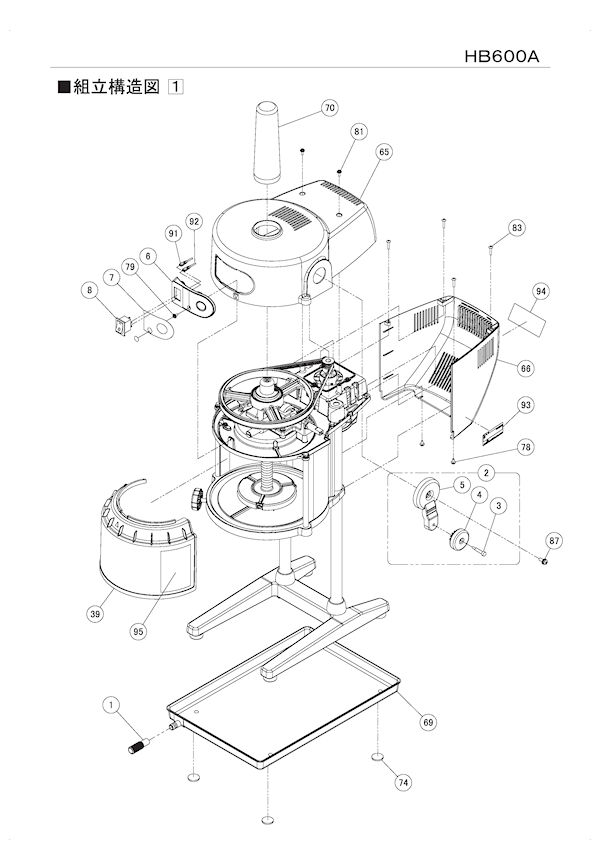

Diagram 1

Product Name

Price

Quantity

HB-600A #2 Crank Handle

$40.60

HB-600A #6 Front Cover

$6.60

HB-600A #7 Front Panel

$2.00

HB-600A #39 Slide Cover

$17.40

Hatsuyuki HB-600A Shaver Parts

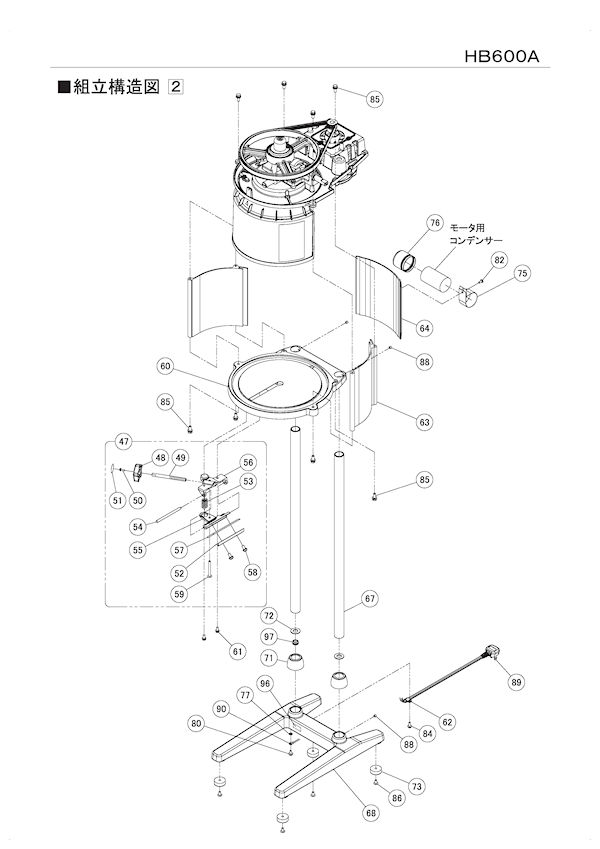

Diagram 2

Product Name

Price

Quantity

HB-600A #47 Blade Holder Assy

$78.60

HB-600A #60 Shaving Table

$98.40

Hatsuyuki HB-600A Shaver Parts

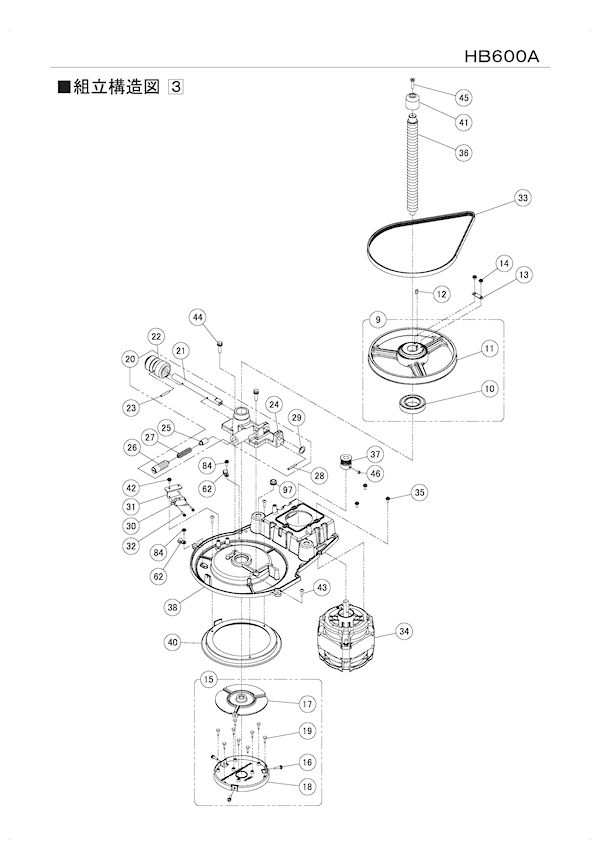

Diagram 3

Product Name

Price

Quantity

HB-600A #15 Complete Ice Hollder Assy

$14.40

HB-600A #33 Driving Belt

$39.40

HB-600A #57 Blade

$65.60

HB-600A #65 Head Cover

$63.00

HB-600A #66 Rear Cover

$52.40

HB-600A #69 Drip Tray

$27.60

HB-600A #70 Shaft Cover

$4.00
