Hatsuyuki HF-500E Shaver Parts

Diagram 1

Diagram 2

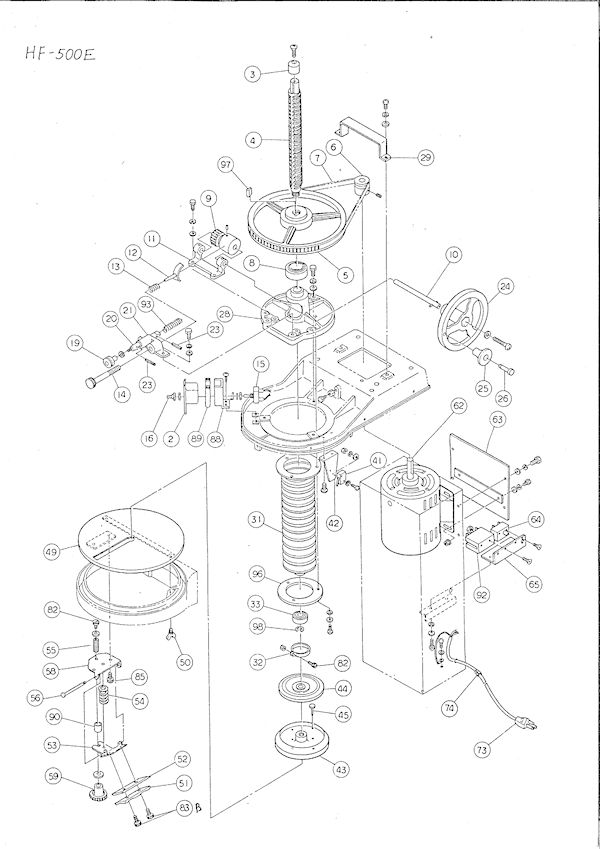

Hatsuyuki HF-500E Block Ice Shaver

Diagram 1

Product Name

Price

Quantity

HF-500E #7 Belt

$30.40

HF-500E #24 Crank Handle Set

$34.80

HF-500E #43, 45 Ice Block Holder A

$19.20

HF-500E #44 Ice Block Holder B

$42.00

HF-500E #52 Blade

$48.00

HF-500E #53/59 Shaver Blade Assembly

$137.00

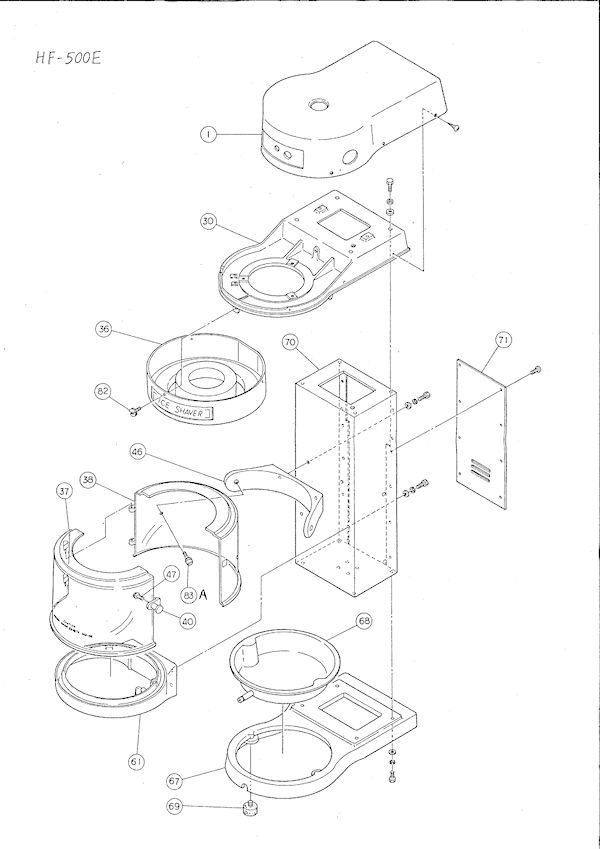

Hatsuyuki HF-500E Block Ice Shaver

Diagram 2

Product Name

Price

Quantity

HF-500E #1 Head Cover

$150.80

HF-500E #37 Ice Shaving Front Cover

$68.00

HF-500E #38 Ice Shaving Rear Cover

$66.60

HF-500E #68 Drip Tray

$8.20
